3D visualization software for Ground Navigator

Visualizer 3D SoftwareAlong with the 3D Ground Navigator comes OKM's original Visualizer 3D Software that allows 3D representations of underground targets.
For additional in-depth analyses of conducted ground scans the user of the 3D Ground Navigator ground scanner can transfer the stored scan images to an USB stick.
Then those files can be opened by OKM's Visualizer 3D software to optimize, measure and improve the recorded scan data. The visualization software already proved its capabilities.
Many treasure finds, buried artifacts as well as other hidden objects have been located by evaluating measurements with Visualizer 3D.
The following functionality is included in the Visualizer 3D software:
Characterize scan images with details like description, area dimensions and soil conditions
Measuring position, size and depth of localized treasures, artifacts and the like
Selection of preconfigured soil types for depth measurement
Variable render and display options (wireframe, resolution, colors, ...)
Automatic and manual correction of erroneous signals (caused by probe inclination during recording) Color filtering

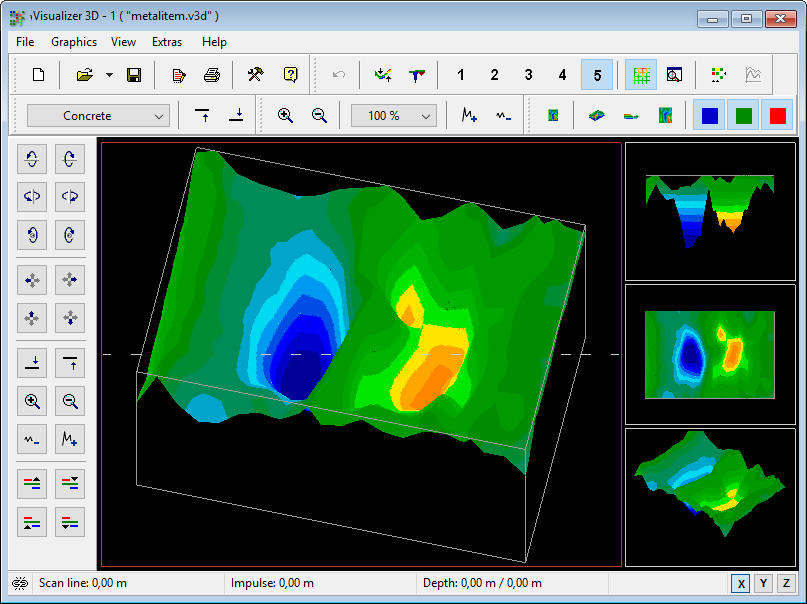

Graphical 3D View

The graphical 3d representation indicates the existence of buried objects that have been detected underground.

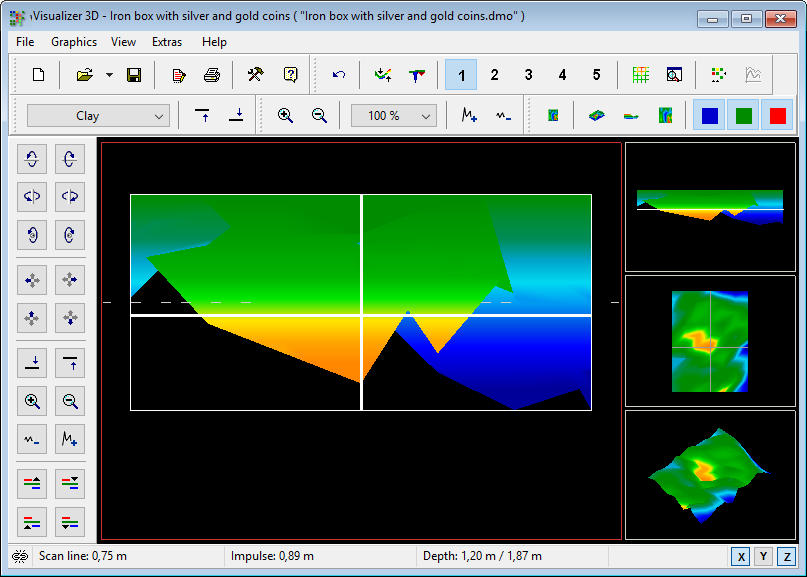

Depth Measurement

By selecting the anomaly within the graphical view the operator can easily measure its current depth.

Visualizer 3D

Visualizer 3D is equipped with several functions no professional treasure hunter should miss. Besides the visualization of detected treasure finds in 3d graphics and the measurement of depth, position and size

Interpolation Filter

Some filter options like interpolation can improve the quality of the ground scan to better find hidden objects.

Error Correction

In case of recording errors (probe inclination, wrong rotation, ...) the 3d software utilizes error correction features.

Multilingual GUI

The graphical user interface (GUI) of the Visualizer 3D software comes in many different languages to support the user in the most efficient way.
